LK Neo
LK NEO

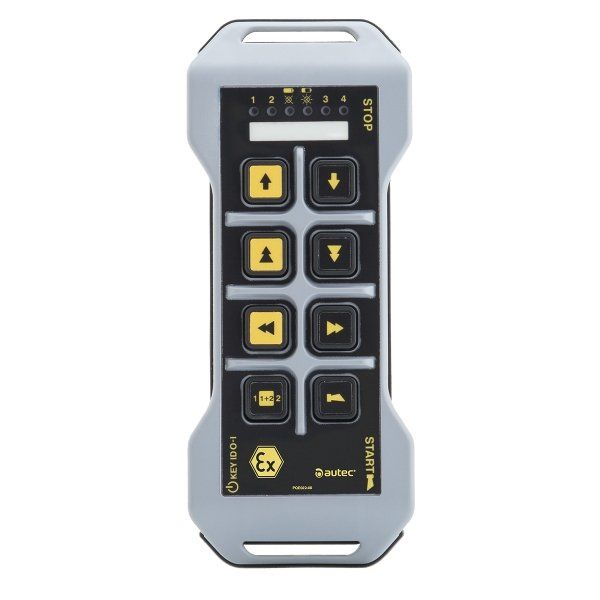

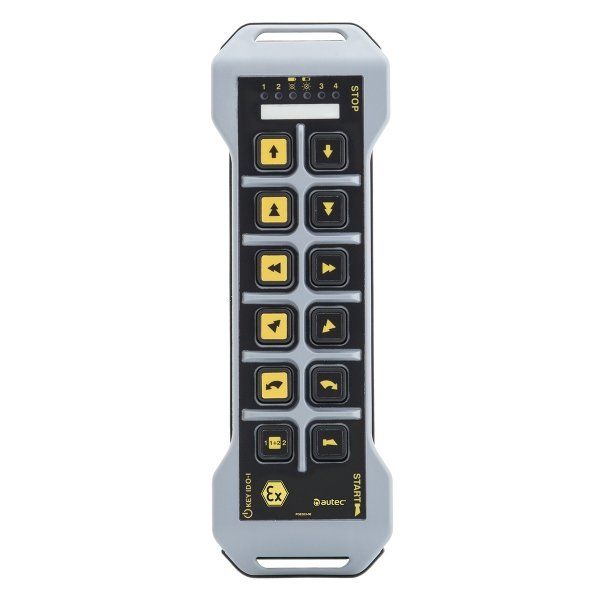

The LK Neo transmitters are AUTEC's premium push button system transmitters, designed to offer customers a highly customisable push button remote to suit almost all industrial radio remote applications.
The standard transmitter is available with 6, 8, 10 and 12 two-step push buttons and can be adapted by adding a wide variety of actuators and optional features to produce a system to match any unique application. The 6 and 10 button transmitter can also be supplied with a 1.8" colour display and can be programmed by RHC / AUTEC to display a wide range of data feedback.
The LK Neo transmitter can be combined with any of the AIR Series receiving units to ensure a wide range of solutions from programmable replays, data feedback, CANopen, MOSFET, PROFINET, EtherCAT at the most cost effective solution.
From 2019 all new LK Neo systems will come with Frequency Hopping Spread Spectrum technology (FHSS) on 870 MHz Frequency as standard. FHSS ensures the operator can continue their work safely without risk of interference and without interruption. The system transmits packages of information throughout the frequency, changing every 200 milliseconds, jumping clear of interference.
The LK NEO is supplied with two removable external batteries and a battery charger.
The LK Neo also offers a wide range of multi-unit solutions including Multiple Transmitter Systems (Take & Release), Multiple Receiver Systems and Multiple Unit Systems.
List of services
- Multi Transmitter Systems
List Item 1
One Recevier and up to 15 Take & Release Transmitters
- Multiple Receiver Systems
List Item 2
Line up link
Independent dual link
Independent multiple link
One to one link
- Multiple Unit Systems
List Item 3
2 and 4 transmitting units can control any 2 to 4 receiving units
Features
• Up to 12 push buttons
• Highly customisable with many options
• Work area up to 100 metres
• Frequency Hopping Spread Spectrum technology (FHSS)
• Rugged design
• 2 year warranty
Optional Features
| - Extractable Key ID 0-1 or M-Key | - IR Sensor | - 1.8” colour display (6 or 10-button versions) |
|---|---|---|
| - 2/3 position switch | - Zero-G Sensor | - Vibration alarm (only for display versions) |
| - Rotary switch | - Enabling Switch | |
| - Potentiometer | - Cable Control |
LK Neo Transmitters
LK Neo 6
LK Neo 6 DF
LK Neo 8
LK Neo 10
LK Neo 10 DF

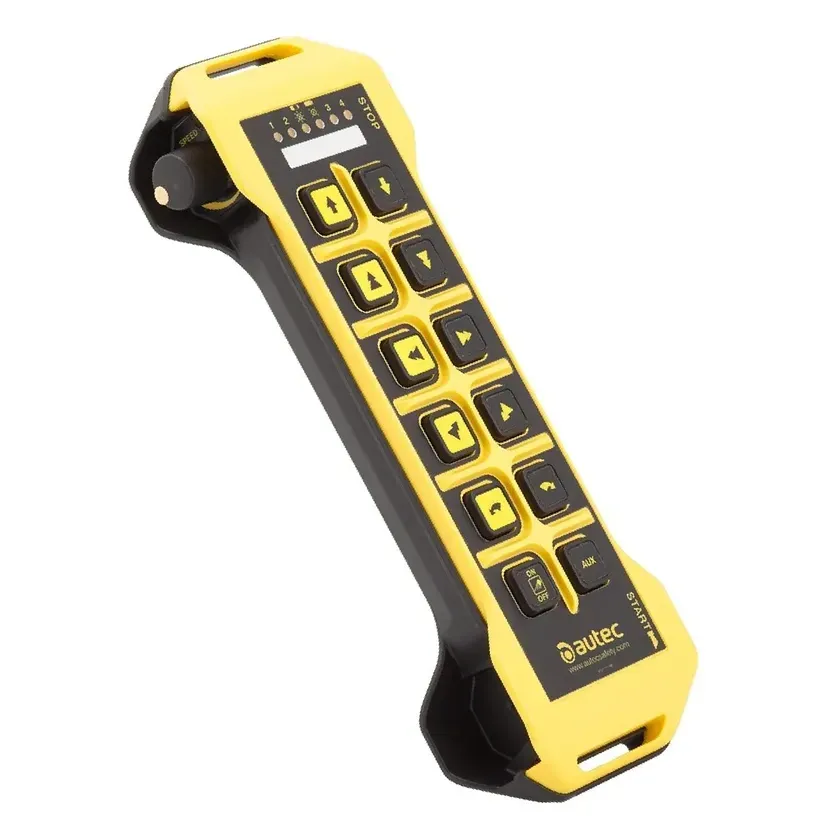

LK Neo 12
Receiving Units
HACRP8
MVRCAN
ACRS13/DCRS13
ACRS15/DCRS15
