The Dynamic Series

The Dynamic radio remote has been designed to control hydraulic equipment including HIABS, boom loading cranes, lorry mounted cranes, concrete pumping vehicles and all other proportional and digital operated hydraulic valves.

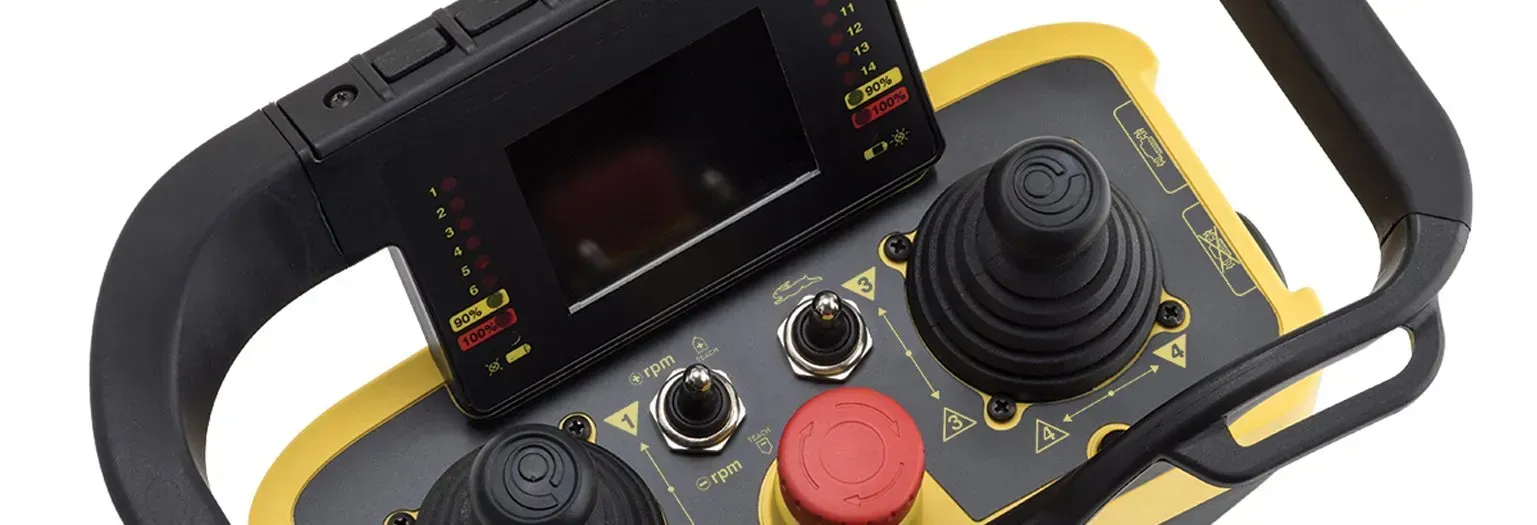

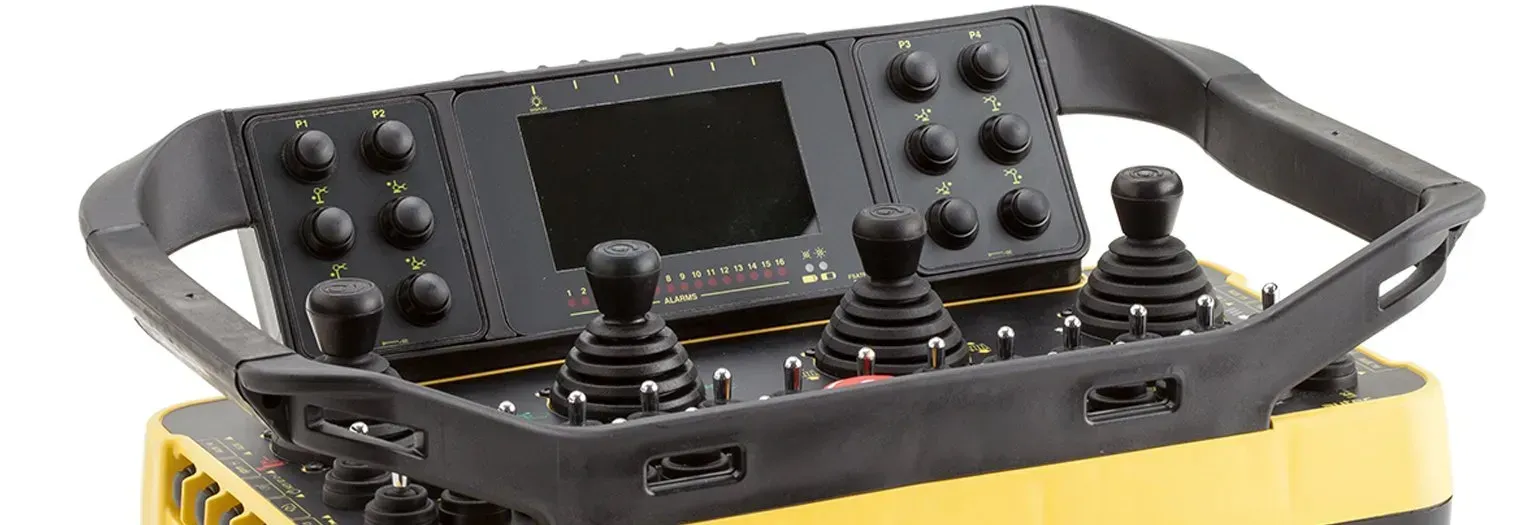

The joystick controllers offer proportional and digital commands with Data Feedback function, with information displayed on an OLED graphic display for mobile hydraulic applications. The standard version has 8 proportional and 15 on/off commands. The systems are highly customisable and programmable, thus enabling function extension up to 12 proportional and 64 on/off commands for the most complex applications. Commands can be programmed to obtain logic functions that meet our customers' specific needs. The Dynamic+ Series offers more complex configurations.

All models satisfy the strictest safety standards, exceeding and anticipating the requirements of current regulations: the Stop protection safety function fulfils the requirements of category 4 / PL (according to the EN ISO 13849-1) and the protection against unintended movements of the actuators from their resting position (UMFS) fulfils category 3 / PL d (according to the EN ISO 13849-1).

The FSA technology is used in the whole Dynamic series and performs new generation features: bi-directional communication, dynamic frequency scan and search in a broad bandwidth. Thanks to the new radio module, radio remote controls constantly and automatically scan the working frequency band and move to a free frequency, many times per second, without interruption for the remote controlled machine. The new communication protocols ensure paramount resistance to interference, even when working in "crowded" environments with many radio devices.

The whole series has been designed to allow a lot of configuration options for both transmitting and receiving units, to meet the needs of countless applications.

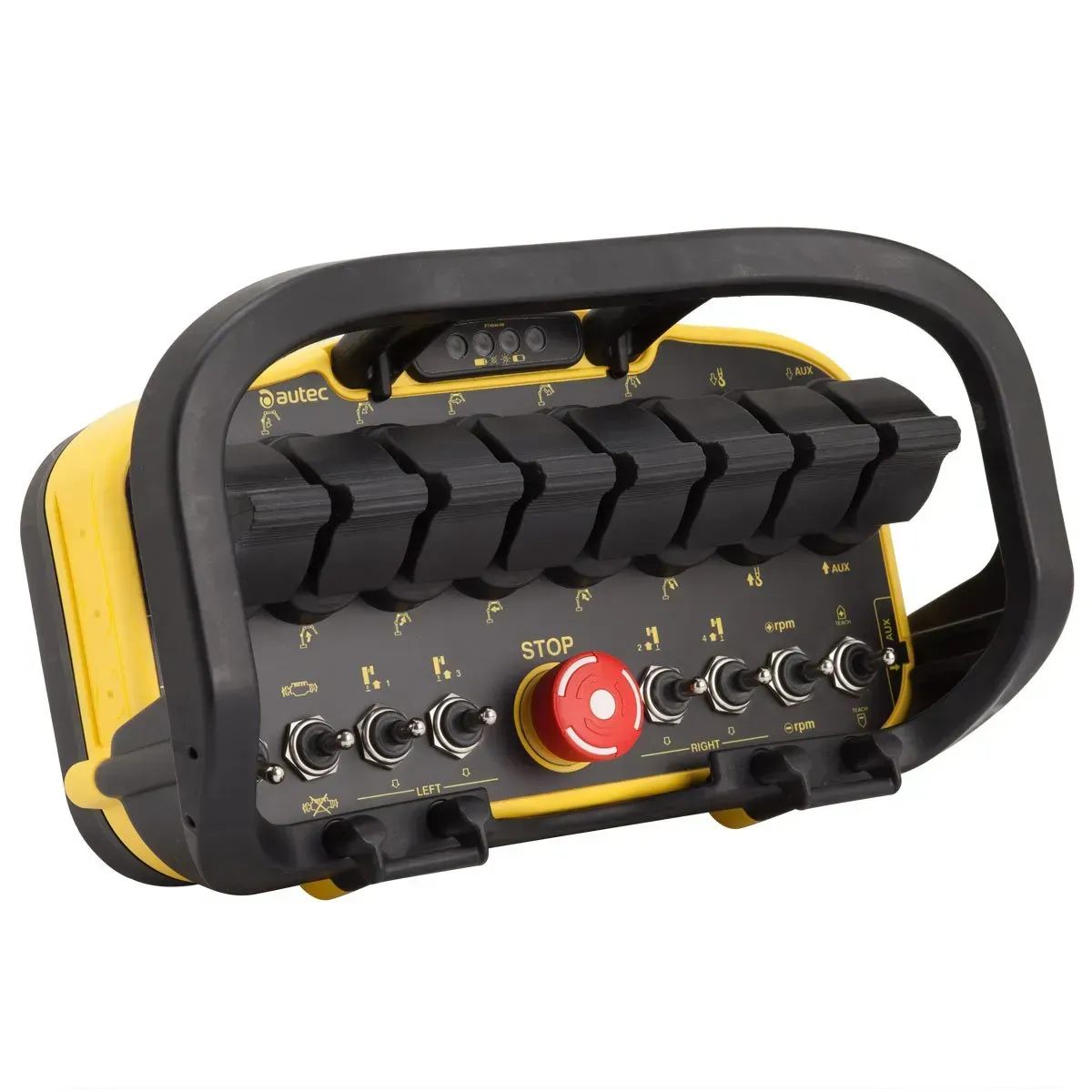

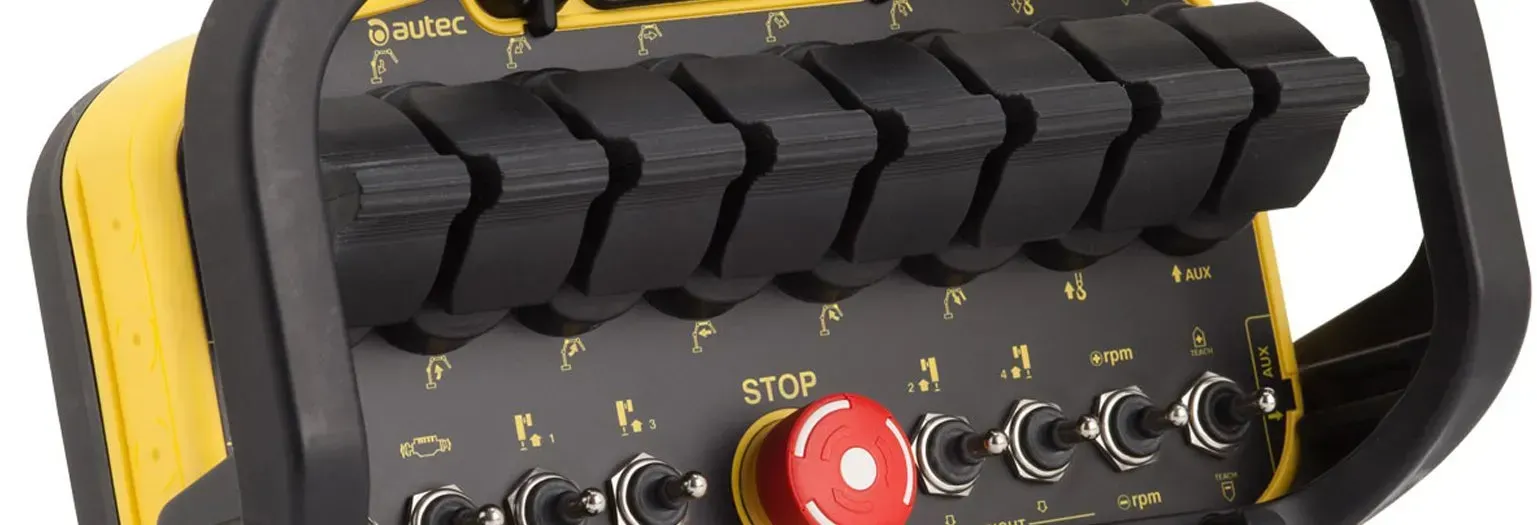

While the whole Dynamic series offers the chance to customise its systems, configurability is definitely a strong point for the FJM transmitting unit. It offers the widest range of commands, thus resulting suitable for complex applications and special machines with several functions (i.e. aerial work platforms, harbour and offshore cranes, drilling machines, recycling machines...) Furthermore, a large graphic display can be mounted on this unit, where icons, measurements or descriptions coming from the controlled machine are displayed.

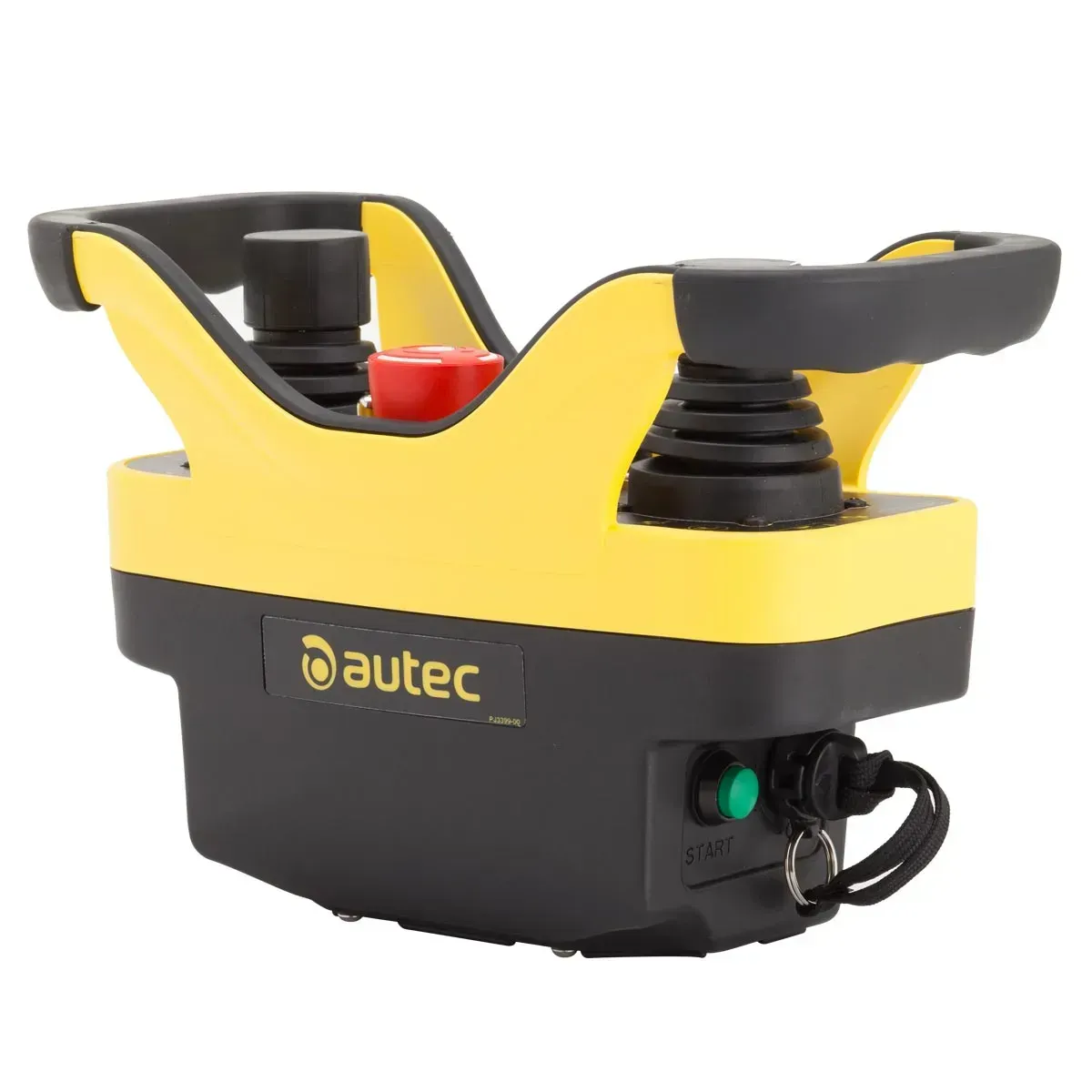

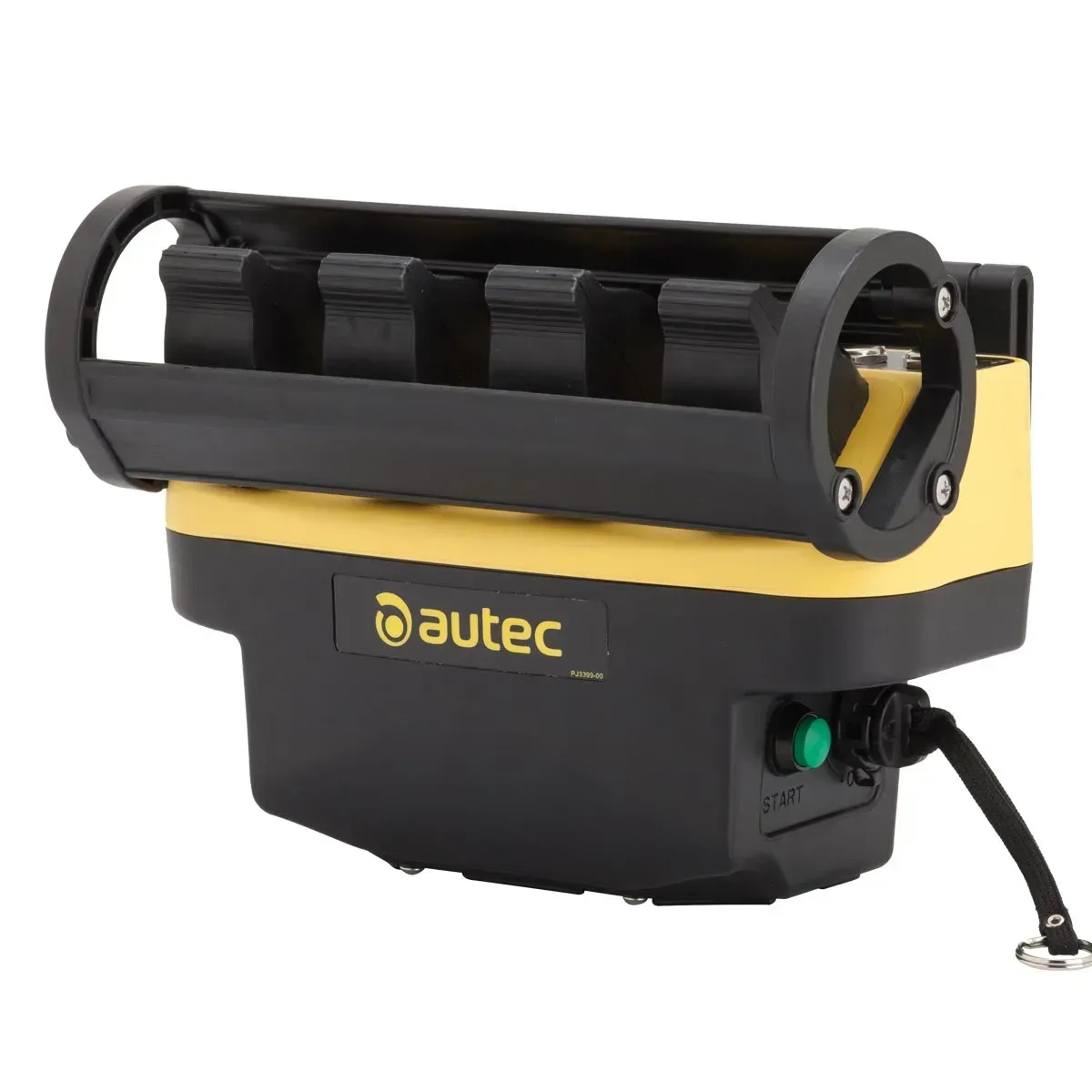

A 1.54" display is mounted on FJS and FJL transmitting units, whereas the FJM unit may also mount a 2.7" display. In both cases, information appears as icons, descriptions or measurements, depending on the desired settings. A multifunction rotary switch is present beside the display on the FJM unit, to quickly browse through the different menus.
